Aqua Chlorine Dozer

Aqua Chlorine on-line Dosing Equipment is useful to mix the chlorine into the pipelines directly with necessary regulation. There is no need for manual operation. Since the chlorine is being added through the Doser it mixes immediately with the water and maintains uniform chlorination in drinking water supply. We have two types of Dozers

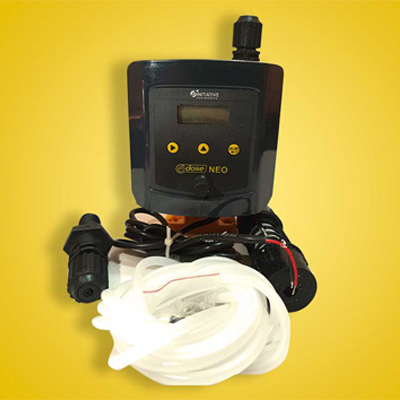

1. Electronic Dozer

The electronic Aqua Quickset Dozer can be suitably wired with the pump to enable simultaneously operation of Dozer only when water is being pumped.

  • Toughened plastic body.
  • Front panel setting with protective cover.
  • Dosing rate: from 6lph-12lph available in different models.
  • Suction/Discharge tubing: 4mm-6mm Dia.
  • Injection into main

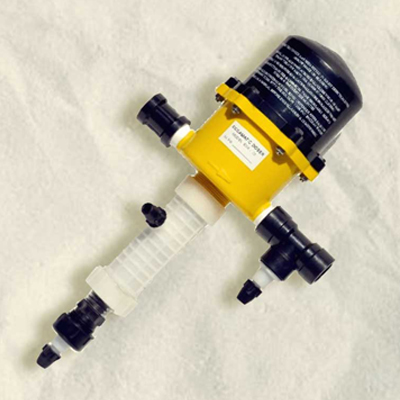

2. Pressure Dozer

Pressure Dozer is used for quick and effective mixing ofAqua Chlorine solution directly into the water supply pipelines. Pressure Dozer is specifically installed at locations where electric power supply is not available. The mechanism operates on the pressure ofa water line made to pass through its Dosing suction mechanism

  • Corrosion resistant, long lasting plastic body.
  • Mechanical setting provision of adjusting dosage.
  • Dosing rate: from 6lph-12lph.
  • Suction/Discharge tubing: 4mm-6mm Dia.

Dosing into supply line through non-returnvalves
